The TD610 is offered for thread depths up to 2.0 × nominal diameter (DN). The tool can thread steel, stainless steel, cast iron, non-ferrous metals and super alloys up to a hardness of 48 HRC (ISO P, M, K, N and S material groups). The program offering is M4 to M20, M4×0.5 to M20×2, UNC8 to UNC7/8, UNF8 to UNF3/4 and G1/16 to G1.

The TD610 Supreme thread milling cutter features an optimized short flute geometry for maximum stability, a differential pitch for smooth running with short threads and a modified neck geometry. The tool is made of Walter’s high-performance grade WB10TU for the best performance in a wide range of materials. The shank is produced in accordance with the DIN 6535 HB standard.

The thread mill is ideal for meeting strict requirements on process reliability, such as when threading expensive components. The cutter produces threads with excellent quality and enables short machining times and a long tool life with few radius corrections.

The Walter lineup of products consists of three categories to its tools. Supreme indicates the highest level of technology and performance available. Perform tools are products that provide an economical solution with focused importance on price and Advance which indicates product efficiently balanced between price and performance.

About Walter

Walter, a global leader in the metalworking industry for over 100 years, offers a wide range of precision tools for milling, turning, drilling and threading applications. The company helps customers in the aviation and aerospace industries, automotive, energy, and general metalworking industry improve process reliability and increase productivity. As an innovative partner capable of creating digital process solutions for optimal efficiency, Walter is pioneering Industry 4.0 throughout the machining industry. With Regional Headquarters in Greer, SC, Walter markets its competence brands Walter, Walter Titex, Walter Prototyp and Walter Multiply through a network of channel partners and field engineers across the USA, Canada, Mexico and Brazil.

MINI GROOVE ‘N TURN® ACME THREADING inserts are designed to cut thread sizes of 6 threads per inch and greater. Tools have geometry to cut standard 29° acme thread profiles. Inserts can be used to cut centralizing or stub profiles by overcutting. The inserts can be used for internal acme threads on parts with bore diameters of .325” and larger.

Available in sub-micron grain carbide grades for ferrous and non-ferrous materials either uncoated or with TiN, TiCN, TiAIN or diamond film coatings. MINI GROOVE ‘N TURN® ACME THREADING inserts can be used on conventional, Swiss and CNC machines.

Toolholders are available in round shank size 1/4”, 3/8”, 1/2” and 5/8” in steel, heavy metal and carbide. MINI GROOVE ‘N TURN® ACME THREADING inserts fit existing “MGT” series THINBIT® toolholders.

THINBIT® offers an extensive selection of 60º and ACME thread forms for both internal and external threading. Custom thread profiles with deliveries from 5 working days are available.

About Kaiser Tool Company

Kaiser Tool Company, Inc. is a world leader in the manufacturing of precision cutting tools for grooving, threading and boring. Our customers know and depend on us for our:
Quality Products,
Fast Delivery,
Superior Customer Service.

Kaiser Tool Company was founded in 1964 with the purpose of supplying small lathe cutting tools that were not available as standard, in-stock items. Today, our line of THINBIT^® cutting tools includes more than 100,000 in-stock tools for grooving, threading, parting, boring and turning as well as custom tools.

In 1987 we started Laser Images^® to provide our customers with laser engravings that are clean, consistent and perfect every time. Instruments, dials, wheels, scales, cutting tools and more, we can engrave virtually anything of any shape and size.

Concurrently, by the 31st of December 2024, all products, and solutions under the UB brand will be retired with no new items produced within this product family. Dormer Pramet will not re-stock UB products. However, the existing stock will be available for customers to order until the 30th of March 2025. At the end of this period, UB products will no longer be available for purchase from our distributors, e-shop, official catalogs, or other channels.

UB is a well-known and respected North American brand with more than 100 years of history supporting manufacturing by providing cutting tools.

“The industry landscape and Dormer Pramet ambitions dictate that we will transition away from the Union Butterfield brand in the market and step away from this product family and offer our customers an upgrade to Dormer Pramet. This will better position us in the market and achieve sustainable growth, benefiting both our business and our customers.” Eduardo Martin, President.

We are committed to being your reliable partner and one of the leading brands in North America.

About Dormer Pramet

Dormer Pramet is a global manufacturer and supplier of tools for the metal cutting industry. Its comprehensive product program encompasses both rotary and indexable drilling, milling, threading and turning tools for use in a wide variety of production environments. An extensive sales and technical support service operate from 20 offices, serving more than 100 markets worldwide. These are assisted by dedicated production facilities in Europe, Americas and Asia, along with a highly developed distribution and logistics network.

The TTP2050 grade’s nano-laminate PVD coating increases tool life on inserts and produces high running parameters for increased threading productivity, giving it the extreme wear resistance to machine cast irons, tool steels, stainless steels and other challenging steels. Made from alternating layers of titanium aluminum nitride (TiAlN) and titanium silicon nitride (TiSiN), this chemistry outperforms the general-purpose coatings often used on threading tools. At the same time, the TTP2050 grade offers the tool geometry to increase productivity in these challenging materials.

The TTP2050 threading grade is available in 44 profiles with geometry -A, in 11 mm and 16 mm (0.433″ and 0.650″) sizes. The new grade comes in both internal and external threading for all standard, common thread profiles.

About Seco Tools, LLC

Headquartered in Fagersta, Sweden and present in more than 75 countries, Seco Tools is a leading global provider of metal cutting solutions for milling, stationary tools, holemaking and tooling systems. For more than 80 years, the company has provided the technologies, processes and support that manufacturers depend on for maximum productivity and profitability.

The versatile TC117 (blind-hole) and TC217 (through-hole) taps tackle material ranging from steel to aluminum (ISO material groups P, M, K and N), materials up to 370 HB and because of this versatility can help save on inventory costs by reducing the number of taps needed. The TC117 blind-hole tap has a 40° helix angle and up to 2.5 x DN with chamfer form C (semi bottoming) or E (full bottoming). The TC217 through-hole tap features a spiral point for forward chip evacuation and a thread depth capability of 3.0 × DN. Both taps use HSS-E substrate that provides excellent durability due to its cobalt enrichment.
The new sizes include UNC thread styles, giving these highly flexible taps an even wider range of application in a variety of materials.

The taps feature WY80RG for good chip control, good wear resistance and higher cutting speeds and WY80FC, which sacrifices wear resistance and cutting speeds but offers much better chip control for stringy and difficult-to-control chips such as stainless steel. Dimension range includes UNC 1-64 to UNC 2 1/2-6; UNF 0-80 to UNF 1 1/4-12; UN 1 1/8-8 to UN 1 5/8-8; UNS 1-14; STIUNC 2-56 to STIUNC 3/8-16; STIUNF 10-32 to STIUNF 3/8-24; and M3 to M20, all offered with DIN length/ANSI Shank(DIN/ANSI standard).

About Walter

Walter, a global leader in the metalworking industry with over 90 years of experience in precision cutting tools for milling, drilling, turning, boring and specialized tools, helps customers improve process reliability and increase productivity. With Regional Headquarters in Waukesha, WI, Walter markets its competence brands Walter Valenite, Walter Titex, Walter Prototyp and Walter Multiply through a strong network of distributors and field engineers across subsidiaries in the USA, Canada, Mexico, Brazil and Argentina.

Walter USA, LLC
N22 W23977 RidgeView Pkwy West | Suite 100
Waukesha, WI 53188
(800) 945-5554

Contact
Kurt Ludeking | Director of Marketing

Increased tool life when machining hardened materials

Allied Machine & Engineering, a leading manufacturer of holemaking and finishing tooling systems, adds the AccuThread T3 to their existing thread mill line. The new AccuThread T3 is built for machining hardened or hard-to-machine materials such as stainless steel, tool steel, and high-temp alloys. It is designed to machine only three threads at a time, reducing tool pressure and dramatically increasing the chances of tool survival. The T3 will provide a longer tool life, less tool breakage and higher quality threads for machinists.

Offered in both inch-shank and metric-shank options, the AccuThread T3 is made for deeper-than-standard threads, available in 2xD and 3xD. Additional diameters are available on request. Allied offers this thread mill for UN thread forms with pitches from #1-64 to 9/16”-12 as well as ISO thread forms with pitches from M2x.4 to M12x1.75. In addition, Allied Machine & Engineering provides their premium AM210® coating to these thread mills to protect from excess wear and improve tool life.

For more information on the AccuThread T3 and other threading tools, please email info@alliedmachine.com or visit http://www.alliedmachine.com/Products/Threading/Solid-Carbide.aspx

About Allied Machine & Engineering:

Allied Machine & Engineering is a leading manufacturer of holemaking and finishing tooling systems. Allied devotes its advanced engineering and manufacturing capabilities to create the widest selection of value-added tooling available to metal-cutting industries around the world. Our tooling solutions deliver the lowest cost-per-hole in a wide range of drilling, reaming, threading, boring, and burnishing applications.

Located in Dover, Ohio, Allied’s precision holemaking technologies provide end users worldwide with the highest level of drill performance. Precision engineering and expert application support make Allied the first and best choice for solving complex metal-cutting challenges. For more information, visit www.alliedmachine.com.

The latest addition to the Carmex Tiny Tool line—the multi-task CMR—allows users to bore, turn, face and chamfer with a single tool. The unique cutting geometry permits machining without the need for a pilot hole, thereby saving the time and expense of an entire operation.

Designed with a vertical coolant hole and a spiral flute, the multi-task CMR continually evacuates chips out of the hole during machining. “The new multi-task CMR Tiny Tool not only shortens machine cycle time but, thanks to the variety of operations it performs, it saves money on tooling,” according to Jeff Dei, president of Carmex USA. “Sub-micron carbide, coupled with BMK grade carbide and advanced PVD triple layer coating, improves finish and yields longer life. The multi-task CMR delivers unprecedented versatility, combined with productivity and dollar savings,” Jeff added.

About Carmex Precision Tools LLC:
Carmex Precision Tools LLC is a sales branch of Carmex Precision Tools Ltd a leading manufacturer of high quality cutting tools, founded in 1988 Maalot, Israel. Product Lines Carmex specialize in the production of threading tools for turning and milling. Our product lines include Thread Turning inserts and toolholders, Mill Thread inserts and tool holders, Mill-Thread Solid Carbide and Spiral Mill Thread. building In addition to threading, we produce grooving tools, Mini Chamfer mills and the Tiny-Tools line of small boring bars for threading, turning, grooving small parts. The company’s different product lines are recognized worldwide as advanced technology, reliable full range lines that offer accurate geometry, excellent cutting performance and extended tool life. Our products and the service we provide live up to the highest standards and outperform them. Carmex also produces special tools in accordance with customer’s requirements.

For more information, please visit:
www.carmexusa.com

Or contact:
sales@carmexusa.com

See our Bantam line of small diameter boring, grooving and threading products capable of boring down to .180 minimum bore. We will have a full display of our Flo-Lock grooving and threading tools with our patented CHIP-FLO chip breaker that allows for more aggressive cutting while giving you complete chip control. These tools are available in inch and metric sizes for threading, grooving as well as deep and face grooving. Superior grades available for cutting titanium and other exotic materials. We offer a complete line of laydown threading and grooving tools that fit all ISO standard holders. We also have PCBN tipped inserts. Tools for milling, profiling, turning will be on display as well. Also come see our patented Threadmilling line for UN, UNJ, ISO, NPT and ACME thread milling.

 We are the leaders of premium threading inserts. We can quote and manufacture any special insert or holder in small and large quantities.

For more information, please visit:

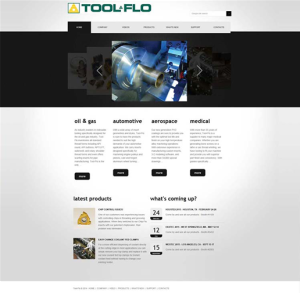

www.toolflo.com

Or contact:
sales@toolflo.com
